Small Semi Auto Egg Tray Machine Simple Pulp Tray Molding Equipment
Product Descriptions
1. This is a semi aut pulp molding production line. It includes Pulping system-Forming system-Drying yard-Hot press machine-Packing system.
2. The production line can make egg tray, fruit tray, coffee-cup tray, medical tray craftworks as well as inner package for industrial products by changing moulds.
3.The wet products can be dried by metal dryer, drying house or under the sunshine.
4. For 30-packed egg tray, the capacity for this line is 400pcs/h, we still have 600pcs/h, 800pcs/h,1200pcs/h, 2000pcs/h and 3000pcs/h and so on.
Specifications
| Model Type | ES400-C |
| Brand Name | NANYA |
| Product Name | Pulp Tray Machine |
| Capacity | 400pcs/h |
| Hydrapulper | 0.5m3, 5.5kw |
| Forming Machine | Plate Size 800*400mm 2pcs/cycle |
| Workshop Requirement | Workshop≥100m2 Drying Yard≥80m2 |
| System included | Pulping system-Forming system-Drying yard-Hot press machine-Packing system |
| Power Requirement | 35kw |
Main Advantages of this Line
1. The machine is easy and simple to operate;
2. It is 100% biodegradable for environment;
3. The workshop for this line is small;
4. The application is wide, it can make different product by changing moulds;
5. The investment for this line is small.

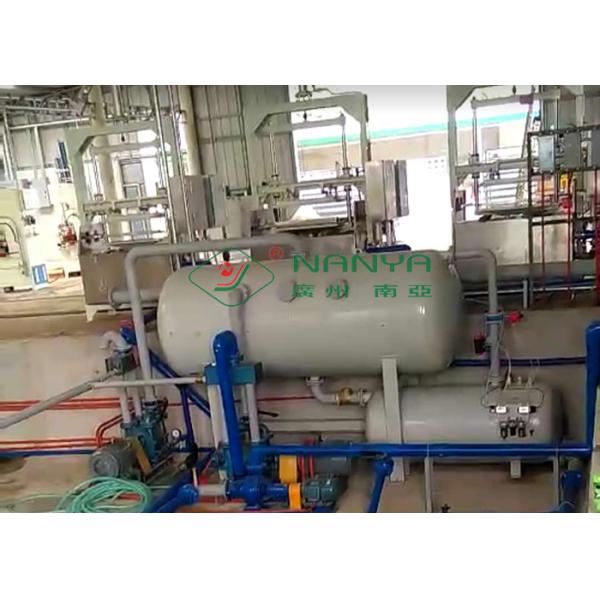

Workshop Glance
Applications
| Egg tray | 20,30,40 cavities egg tray… quail egg tray |
| Egg ox | 6, 10,12,15,18,24 cavities egg box… |
| Agricultural products | Fruit tray, seeding cup, floower cup... |
| Cup carrier | 2, 4 cup carrier, coffee cup holder |
| Industrial package | For TV, Air conditioner, cooker, car parts... |

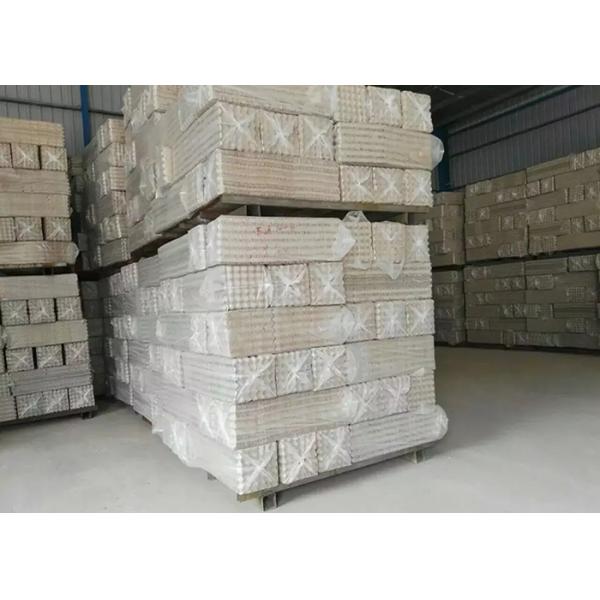

Finished Egg Trays
Business Terms
| NO. | ITEM | DESCRIPTION |
| 1 | Payment Terms | 30% down payment by T/T, 70% before shipment by T/T or L/C at sight |
| 2 | Delivery Terms | FOB Guangzhou, China. |
| 3 | Delivery Time | 30 days recipt down payment |
| 4 | Packages | Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support. |
| 5 | Installation | Engineers available to service machinery overseas |
| 6 | Warranty | 12 months after installation |
After Sales Service
1. We will send spare parts for one year use by free.
2. We will provide operating manual, drawing, process diagram for all of the equipments.
3. We will will instruct the operation, maintain method for the buyer’s worker after installation.
4. We will instruct the production technology and prescription for the buyer’s engineer after installation.
